The Importance of Accurate Titration for Consistent Plating Thickness

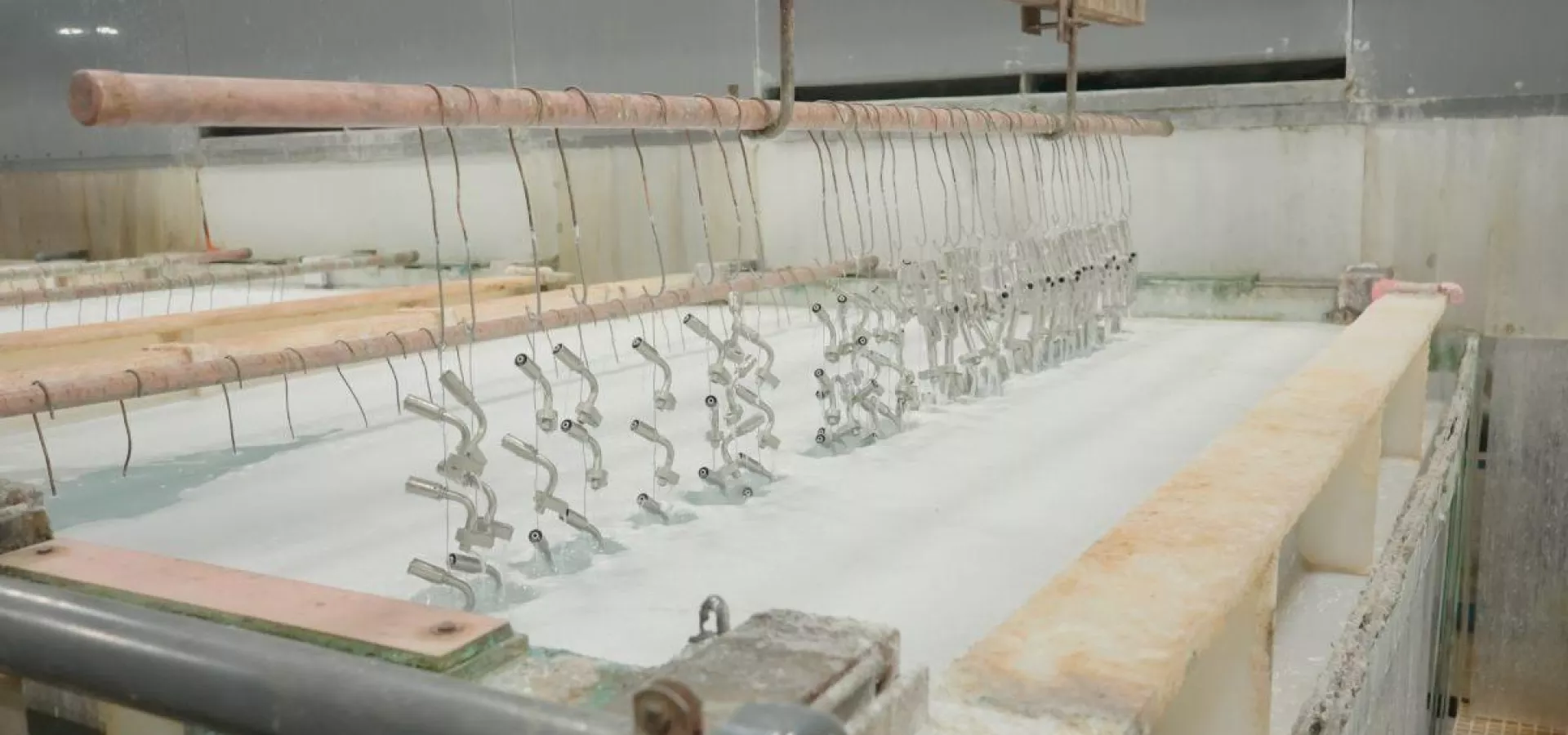

A plating bath that looked perfectly healthy last week is now producing parts with inconsistent coating thickness. The specification window that seemed comfortable has suddenly become difficult to hit. The root cause, more often than not, is not a dramatic equipment failure, it is a gradual drift in bath chemistry that went undetected because titration was delayed, performed imprecisely, or misinterpreted.

For metal finishing professionals, accurate titration is the analytical foundation upon which consistent electroplating results are built. Without regular, precise measurement of metal ion concentrations and supporting chemistry, even the most advanced plating systems will produce unpredictable results.

This article examines why titration accuracy matters, how poor titration impacts thickness and uniformity, the common failure modes that compromise results, and the best practice strategies for building a reliable analytical program.

Why Titration Accuracy Matters

In electroplating, coating thickness is directly governed by the rate at which metal ions are reduced and deposited onto the substrate. This deposition rate, in turn, depends on the concentration of the metal ions in solution, the current density applied, and the efficiency of the electrochemical reaction.

Titration offers the quantitative data needed for proactive chemistry management. Accurate titration schedules prevent thickness problems and costly rework by detecting concentration changes pre-production. Inaccurate titration leads to incorrect bath additions, resulting in unpredictable deposit quality and compounding performance issues.

Impact on Thickness and Uniformity

When metal concentrations drift below the optimal range, the plating rate drops — resulting in thinner deposits for the same processing time. When concentrations climb too high, over-deposition, roughness, and burning can occur. In alloy systems like zinc-nickel, the ratio of the two metals must remain within a narrow band; even small shifts produce deposits with incorrect alloy composition, compromising corrosion resistance.

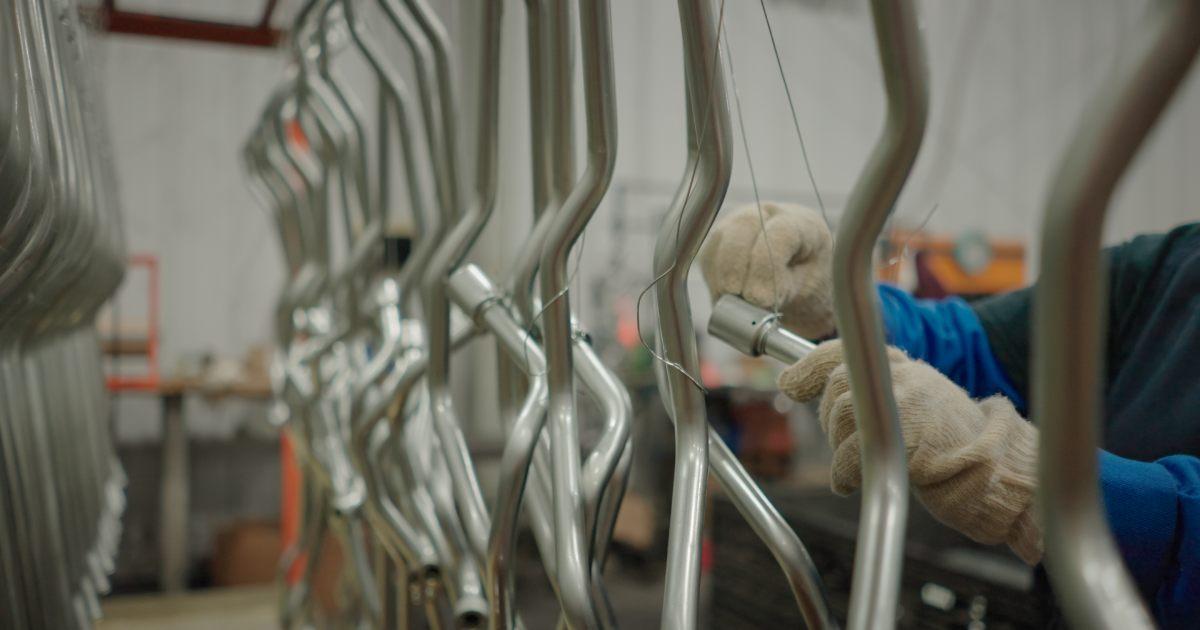

Inaccurate titration leads to inconsistent plating thickness.

• Part-to-part inconsistency: Parts on the same rack experience varied current densities. Operating outside the optimal concentration window amplifies this, causing thickness spreads beyond specifications.

• Lot-to-lot drift: Infrequent titration causes bath chemistry to gradually shift. Thickness may be high before an addition and low after.

• Alloy composition deviation: In binary alloy systems, the deposition ratio is highly sensitive to relative metal concentrations. A small change (e.g., 10%) in one metal's concentration can significantly alter deposit composition, impacting corrosion performance.

Understanding how bath additives interact with the plating chemistry is critical for accurate analysis. Learn why nickel sulfate remains essential in modern electroplating for a deeper look at how foundational chemistry influences deposit quality.

Types of Titration in Metal Finishing

Different bath chemistries require different analytical approaches. The three most common titration methods in plating operations are:

Complexometric (EDTA) Titration

The workhorse of plating bath analysis. In this method, EDTA (ethylenediaminetetraacetic acid) is used as a chelating agent to bind metal ions in solution. The endpoint is detected by a color change in an indicator dye.

This method is effective and widely accessible, but it requires careful operator technique. The endpoint color change can be subtle, and results are sensitive to sample preparation, indicator freshness, and titrant standardization.

To ensure your results are always precise, PAVCO® customers benefit from our comprehensive technical service support, including complimentary bath sample analysis. Send us your samples, and our experts will provide reliable, data-driven recommendations to maintain your optimal chemistry and consistent plating thickness.

Acid-Base Titration

Used primarily to measure free acid or alkalinity in baths. For example, sulfuric acid concentration in acid copper baths or sodium hydroxide in alkaline zinc systems is determined by titrating against a standardized base or acid to a known pH endpoint.

Redox Titration

Applied in chemistries where oxidation-reduction reactions are relevant — for instance, determining the concentration of oxidizing agents in passivate solutions or measuring the ratio of trivalent to hexavalent chromium in chromium baths.

Best Practice Strategies

An effective titration program is structured around production reality, not arbitrary intervals:

1. Assess bath consumption rate — Calculate how quickly your bath depletes metal ions based on ampere-hours of production. Faster consumption requires more frequent analysis.



2. Establish upper and lower control limits — Define the acceptable concentration range for each analyte. These limits should be tighter than the bath's full operating range to provide early warning.



3. Set analysis frequency by production volume — High-throughput lines need testing every 2–4 hours. Lower-volume operations may succeed with daily analysis, but should increase frequency during periods of heavy production.



4. Implement trending and SPC — Plot titration results on control charts. Identify trends before concentrations reach action limits. This transforms titration from a reactive check into a predictive quality management tool.



5. Assign accountability — Designate trained personnel for each shift. Ensure titration protocols, results, and corrective actions are documented consistently.



6. Calibrate regularly — Verify titrant concentrations against primary standards. Check and calibrate pH meters and automated equipment per manufacturer schedules.



7. Cross-validate with deposit testing — Complement bath analysis with regular measurement of actual deposit thickness and composition using instruments such as XRF. When titration results and deposit results diverge, investigate immediately.

The Connection Between Titration and Post-Plate Quality

Accurate titration does not just influence thickness — it impacts the entire downstream quality chain. A bath operating within specification produces deposits with predictable grain structure, internal stress, and composition. These properties directly determine how well the part performs during post-plate treatments such as passivation, sealing, and topcoating.

Conversely, parts plated from a drifting bath may exhibit poor passivate adhesion or uneven sealer coverage, resulting in corrosion failures in the field. Explore PAVCO®'s comprehensive line of post-plate solutions to understand how consistent plating quality enables optimal post-plate performance.

Partner with the Leaders in Process Chemistry

Consistent coating thickness is the product of consistent bath chemistry, and consistent bath chemistry starts with accurate titration. PAVCO® provides not just the chemistries but the support to ensure your operation maintains the tightest possible process control.

Contact us today to discuss analytical support for your plating operation and learn how accurate titration can improve your throughput and reduce your reject rate.
